Tiller®-liftmobile

0.00 excl VAT

Safe, efficient lifting for museums and heritage sites with the Tiller® Liftmobile. Protect collections, prevent injuries, and save time.

Contact us for pricing information

Description

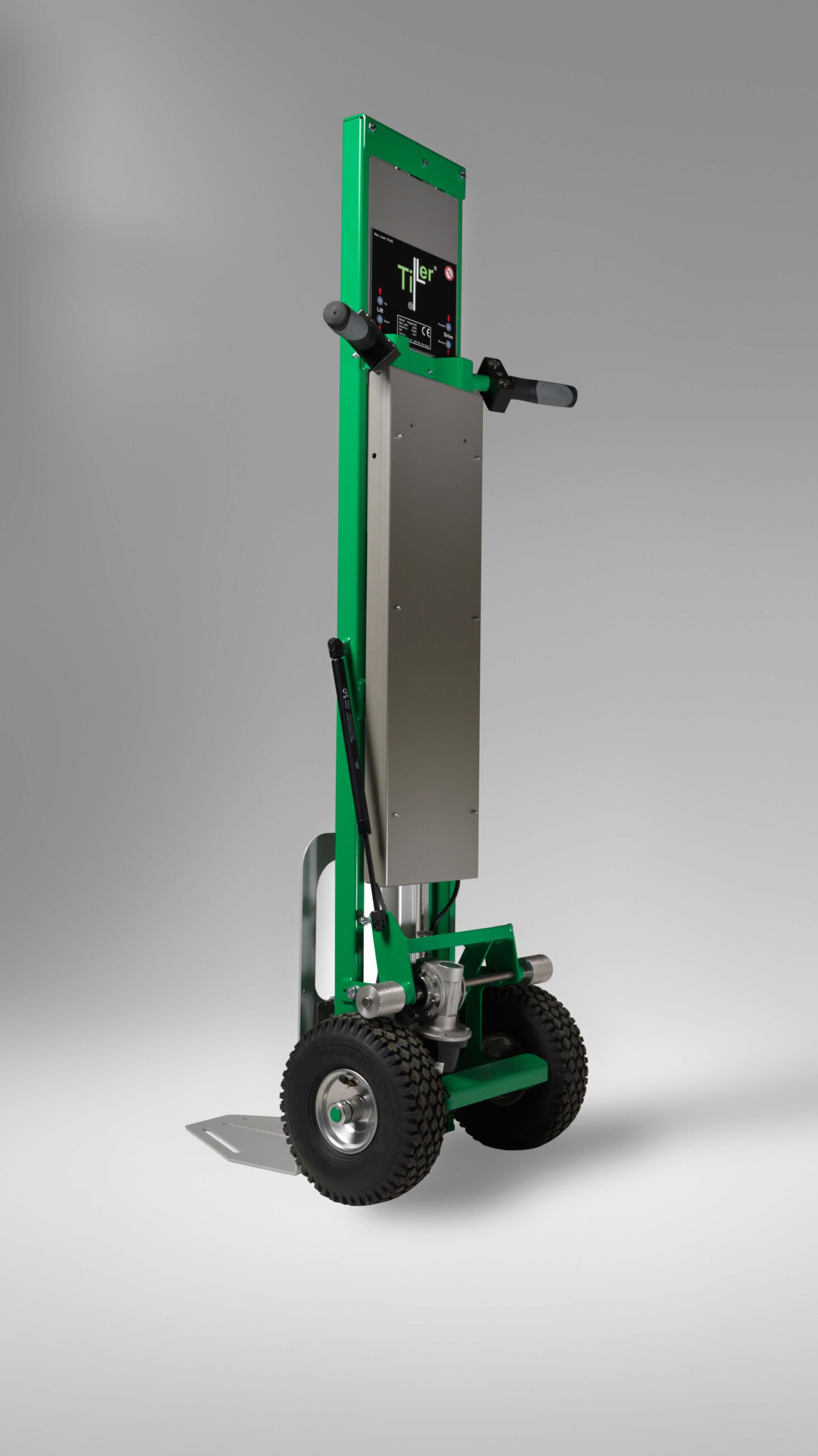

Tiller® Liftmobile – Safer, Smarter Lifting for Museums and Heritage Sites

Preserve your collections — and protect your team — with the Tiller® Liftmobile.
Designed for safe and efficient lifting, the Liftmobile makes it easy to move heavy objects at the push of a button, reducing manual handling risks and saving time during installation, deinstallation, and storage work.

Designed for Museum and Heritage Environments

The Liftmobile features:

  • Electric lifting function for effortless handling of heavy or fragile items

  • Automatic brake for maximum stability and control

  • Self-lifting capability for ease of transport and setup

  • Durable steel frame with clear, easy-to-use controls, ideal for both back-of-house and public-facing environments

Using the Liftmobile helps safeguard staff and volunteers from lifting injuries while increasing efficiency during exhibition changeovers, collection moves, and gallery fit-outs.

Flexible for a Range of Heritage Tasks

Available in different models, the Liftmobile can be adapted with accessories to assist with:

  • Moving and stacking crates, boxes, and object pallets

  • Positioning plinths, showcases, and exhibition panels

  • Handling audiovisual equipment, lighting rigs, and digiboards

  • Carefully relocating large or delicate collection items

Already widely used in sectors requiring careful handling, the Liftmobile is an ideal solution for museums, galleries, archives, and heritage properties.

Specification Details
Model Tiller® Liftmobile LM120
Certification CE certified (compliant with EEA regulations)
Directives/Standards Machinery Directive 2006/42/EG; EMC Directive 2004/108/EG; Low Voltage Directive 2006/95/EG; NEN-EN-ISO 12100-1/2; NEN-EN-IEC 60204-1; NEN-EN 574; NEN-EN 349; NEN-EN-IEC 61000-6-2; NEN-EN-IEC 61000-6-4; Risk assessment: NEN-EN-ISO 14121-1; NPR/ISO-TR 14121-2
Max. Lift Capacity 120 kg
Lifting Speed 60 mm/s
Max. Lifting Height 0.80 m (option for 1.10 m)
Noseplate Depth 0.35 m
Noseplate Width 0.30 m
Overall Weight 43 kg
Overall Height 1.55 m
Overall Width 0.52 m
Material Coated steel
Tyre Size 4.10/3.50 – 4
Battery Type NiMH
Battery Voltage 24 V
Charger Voltage 110V–220V
Recharging Time 8 hours (full discharge), then trickle charge

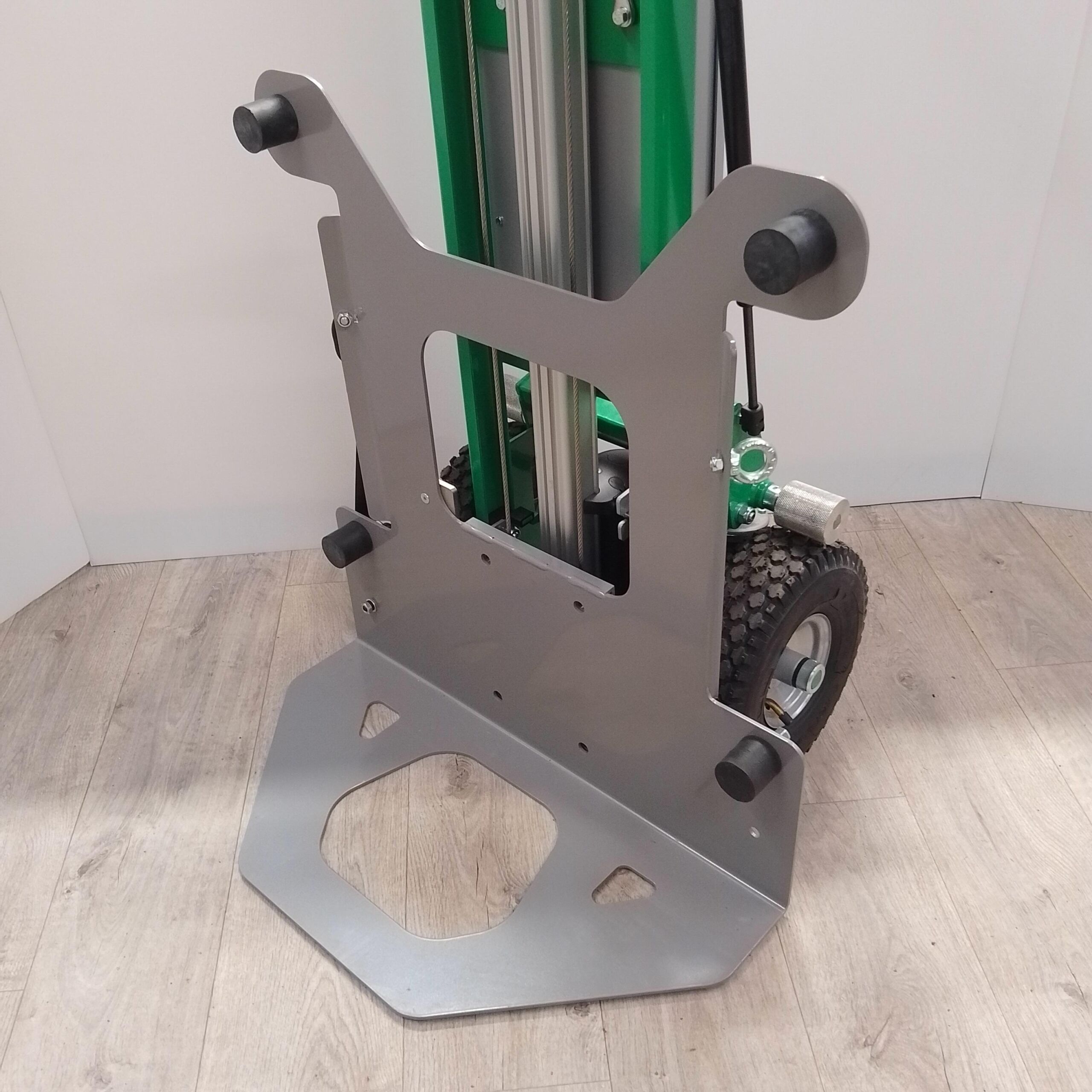

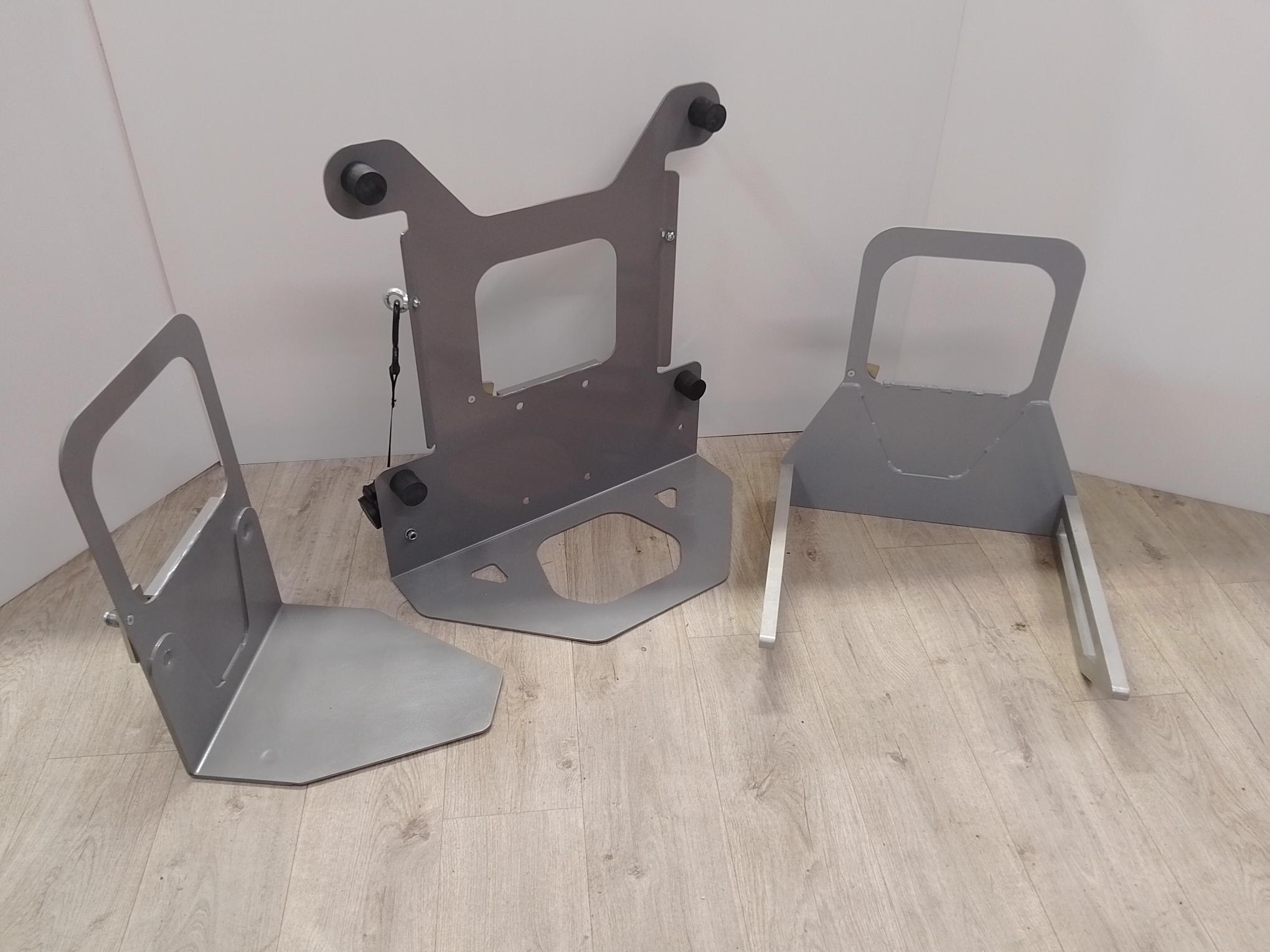

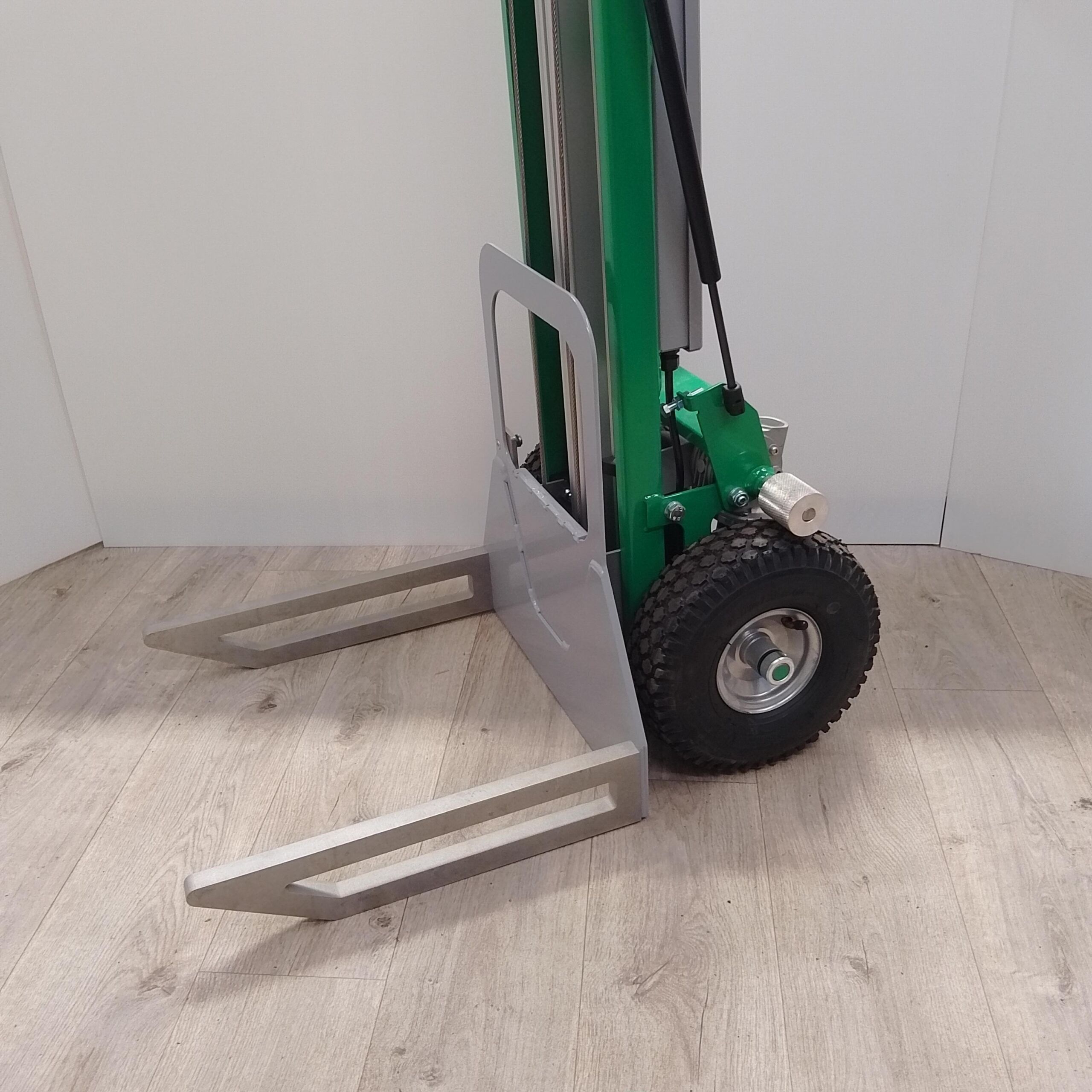

A range of accessories and combinations are available to adapt your Tiller Liftmobile to your specific needs – see some of the options in the video below
